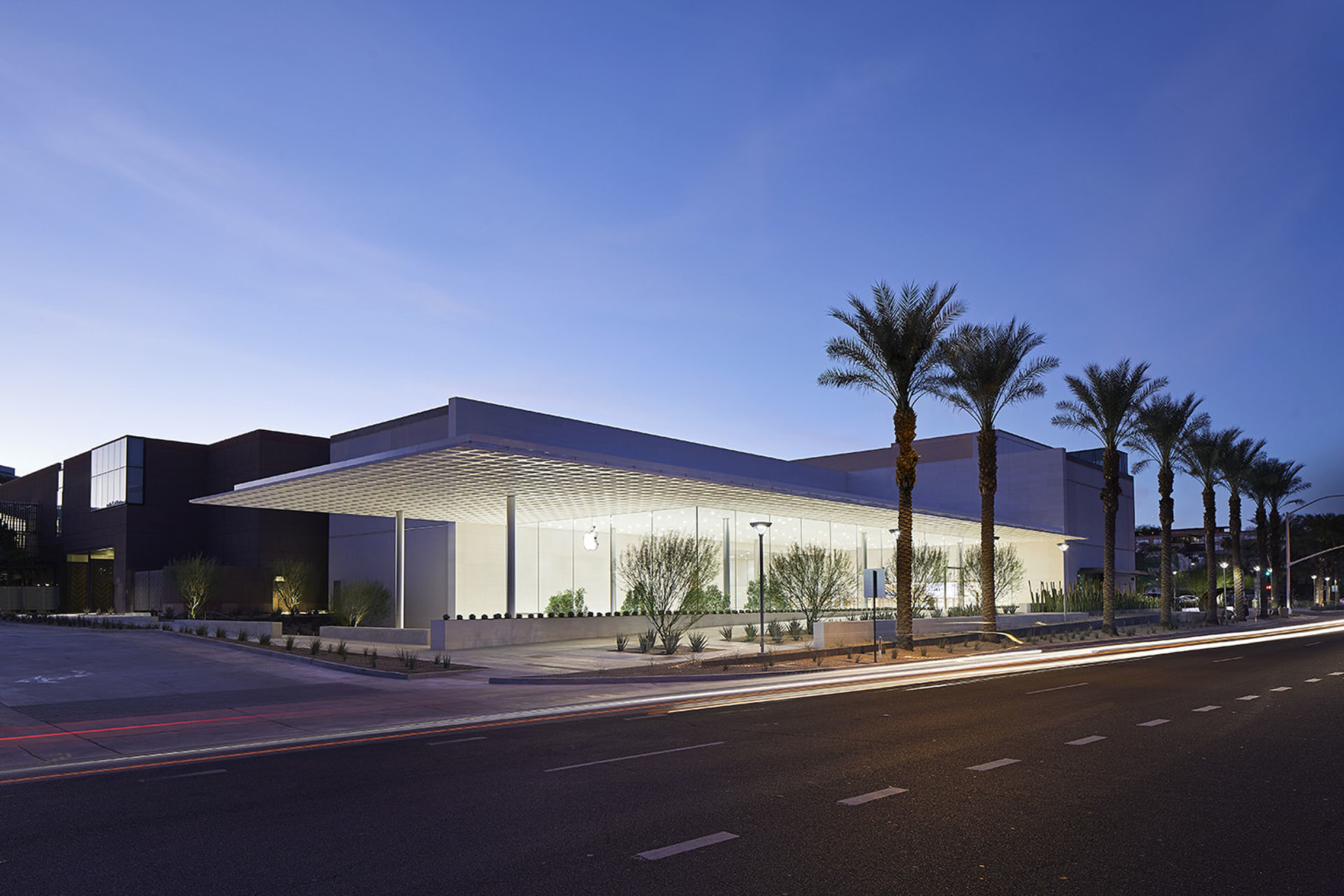

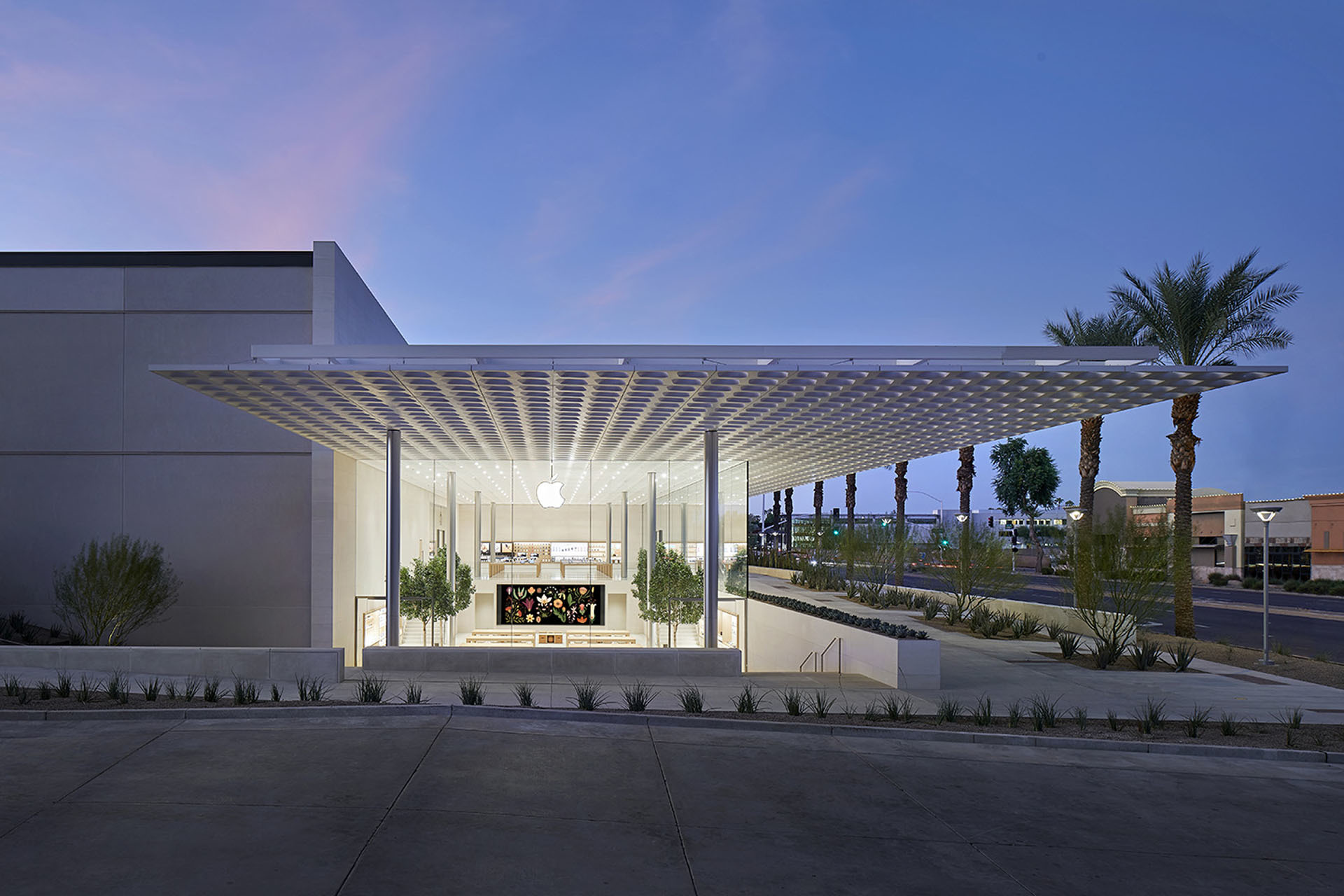

1600 Apple Scottsdale Exterior Heros 3

Apple Scottsdale Fashion Square

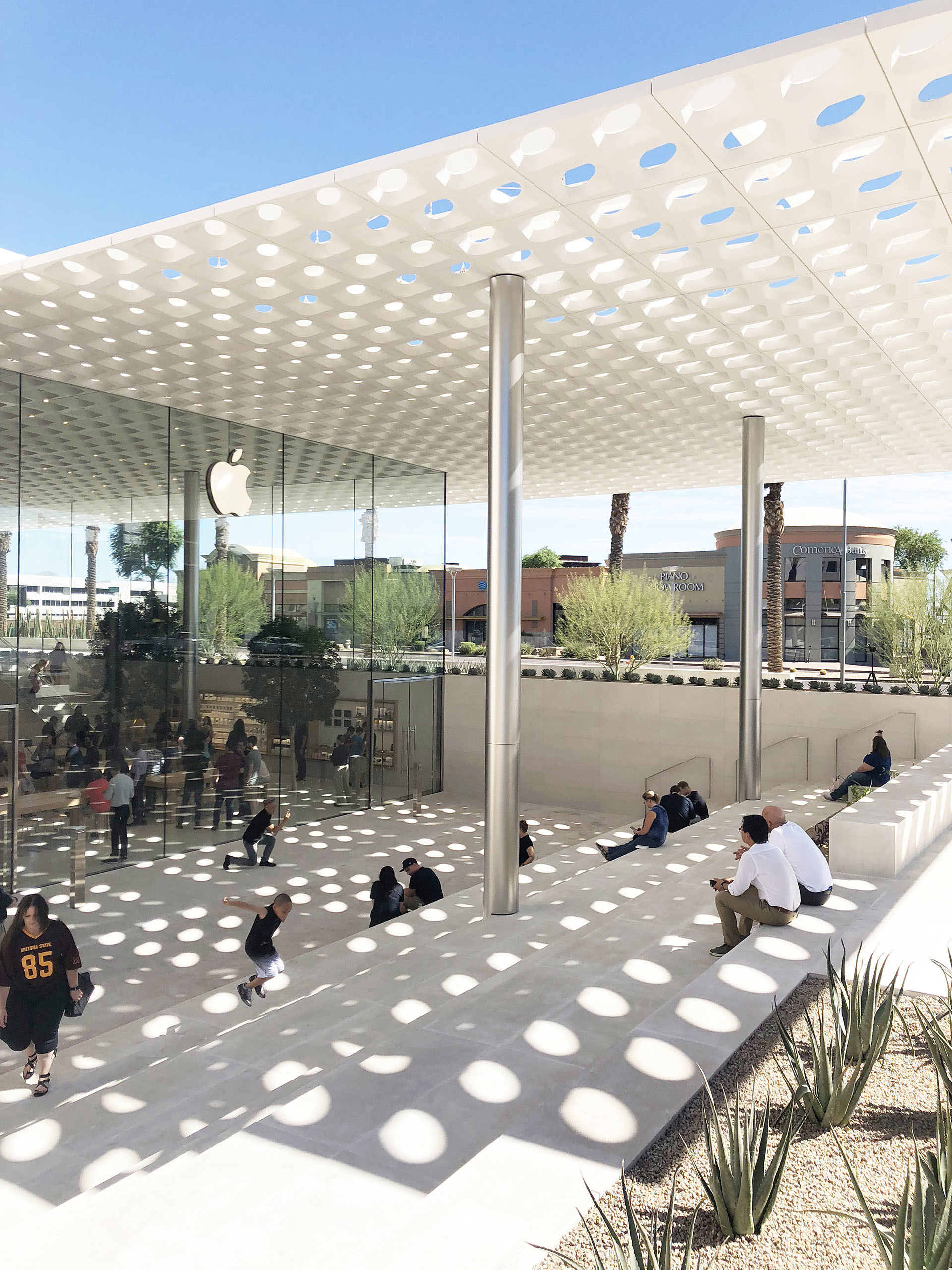

Apple has created a “town square” with its Scottsdale store, a place that engages the public and turns the introverted mall experience outward to the city and establishes a shared civic space. The two-story, split-level store creates a public forum that stretches from the interior to the outdoor amphitheater.

1600 Apple Scottsdale Exterior Heros 2
1600 Apple Scottsdale Exterior Public 1

Arizona’s harsh desert environment called for significant shading of Apple’s iconic glazing system. The interior ceiling acts as an exterior shading device, blurring the distinction between indoors and outdoors, while keeping the consumer visually connected to the world outside.

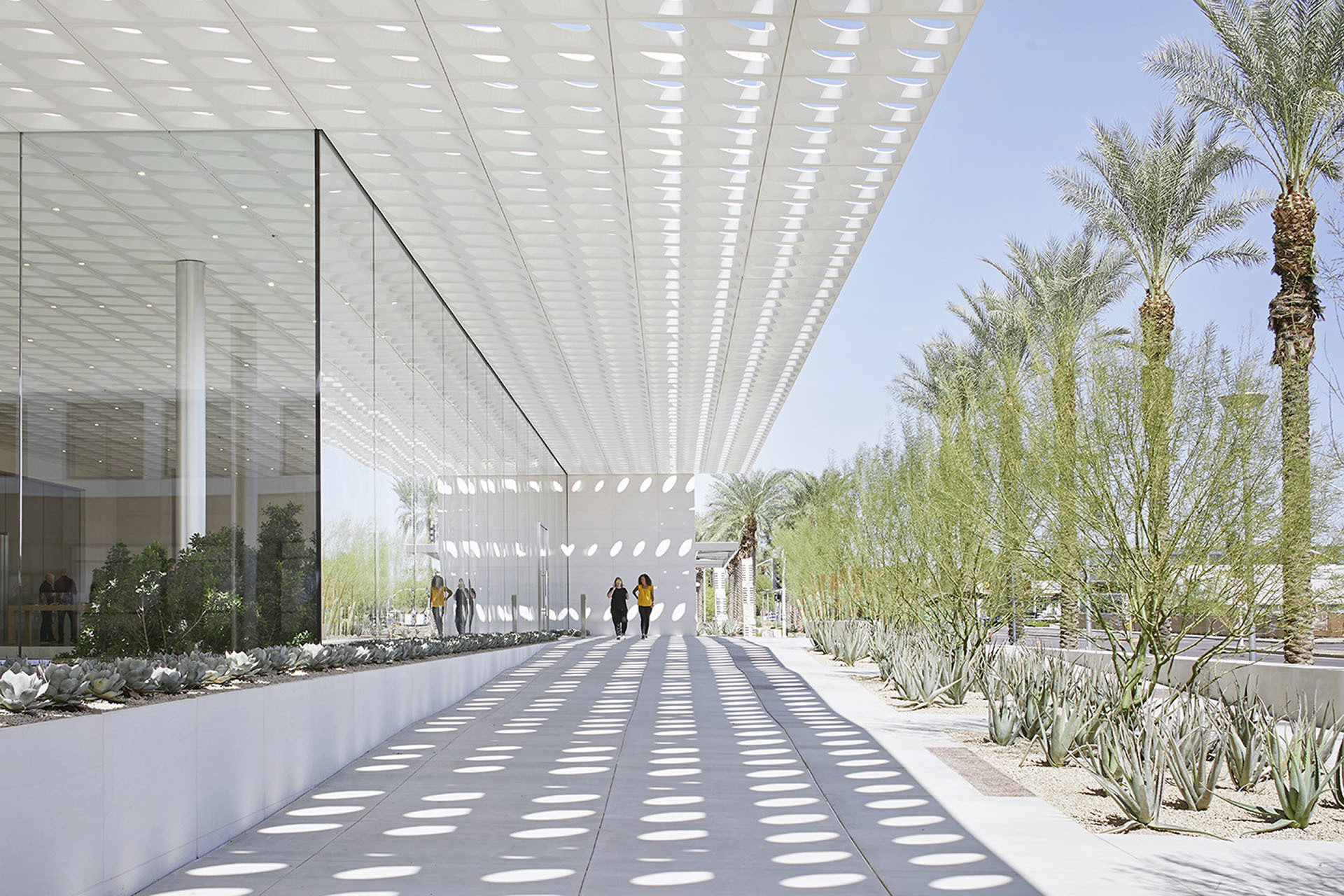

1600 Apple Scottsdale Exterior Public 4

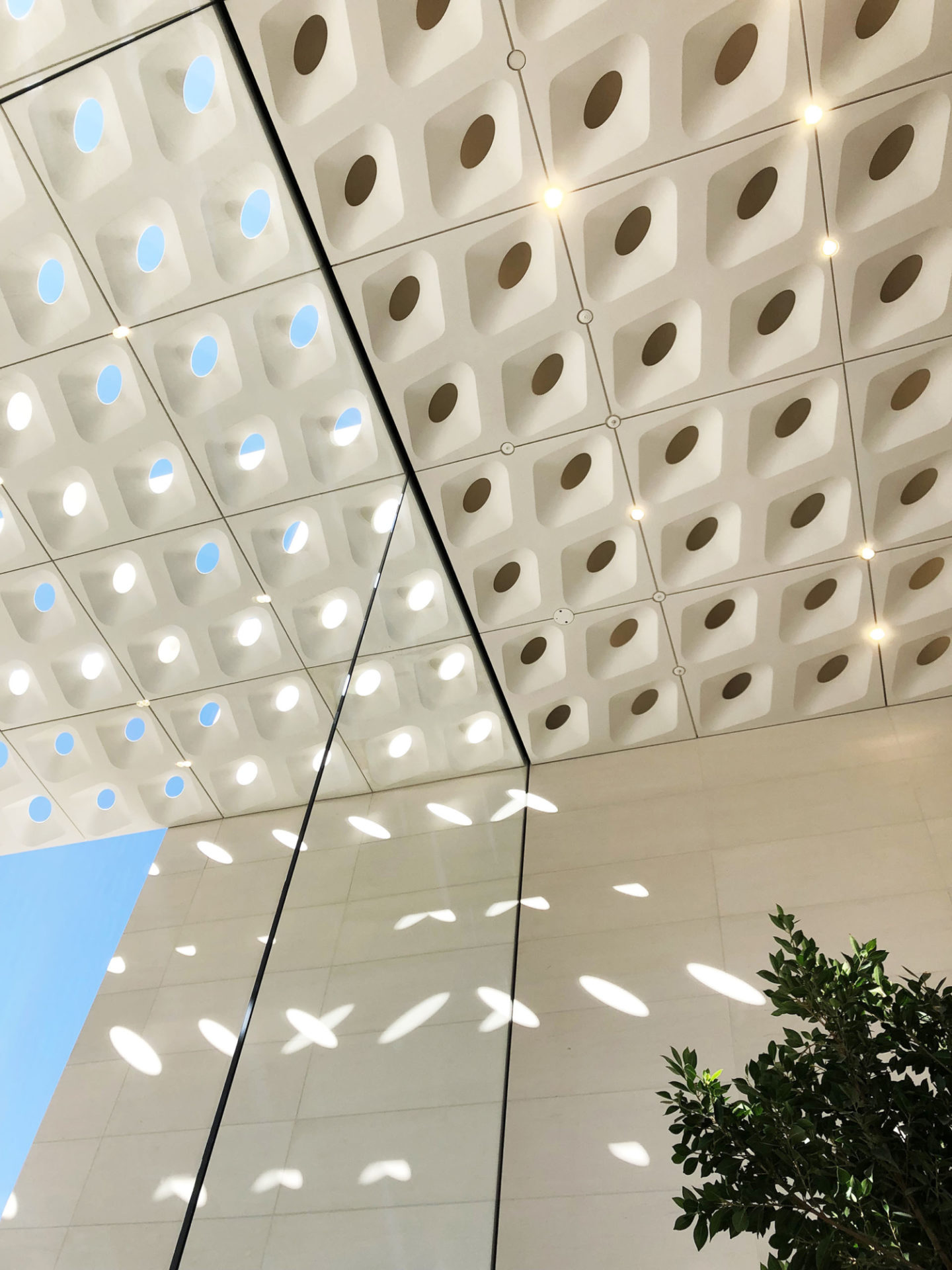

1600 Apple Scottsdale Glass Detail Inside

Engineered to cantilever a remarkable distance from the building façade, the sunshade reveals a structural slenderness. This simple and elegant structure, in combination with the low height of the store, results in a building that is both iconic and humble.

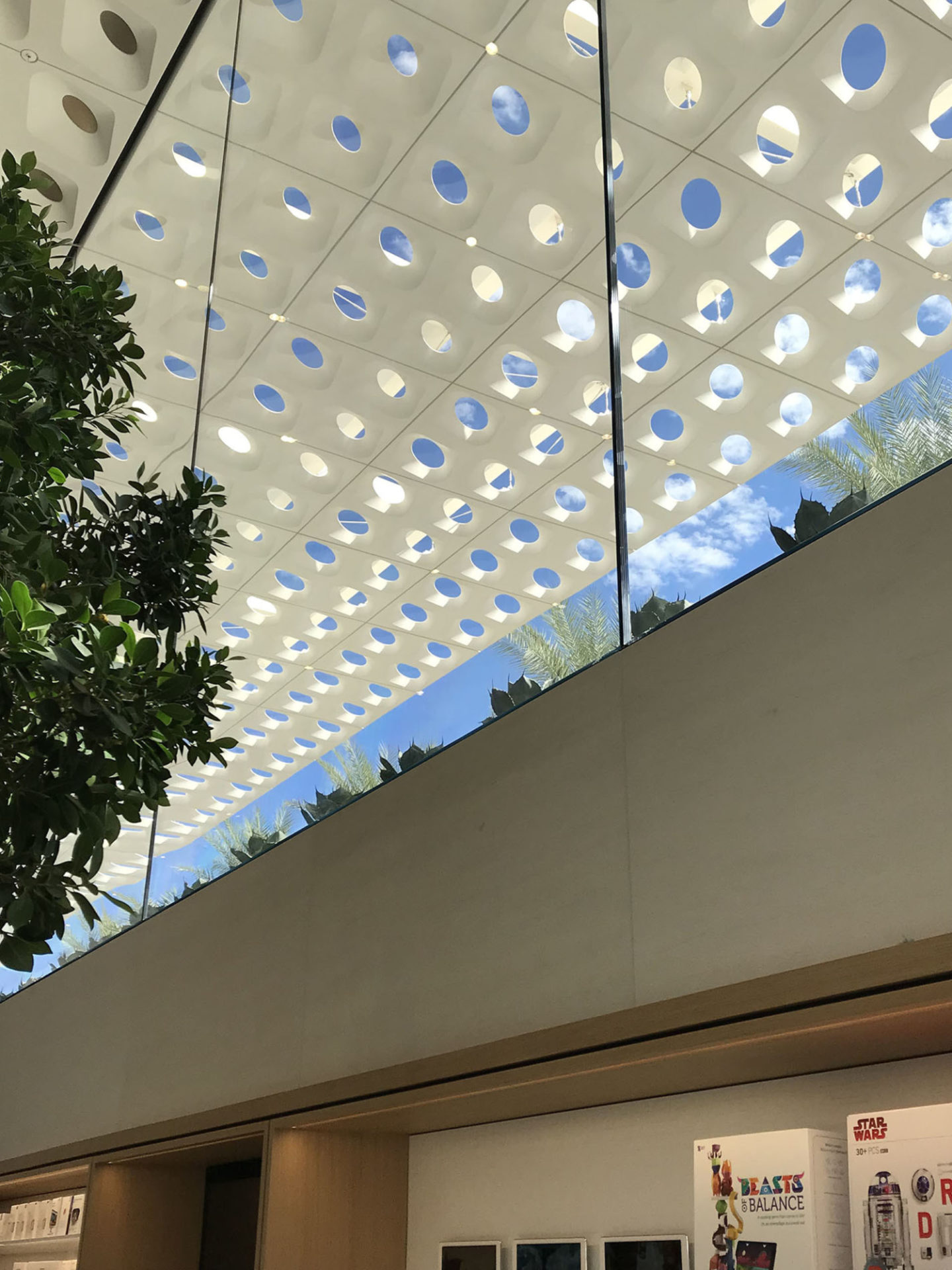

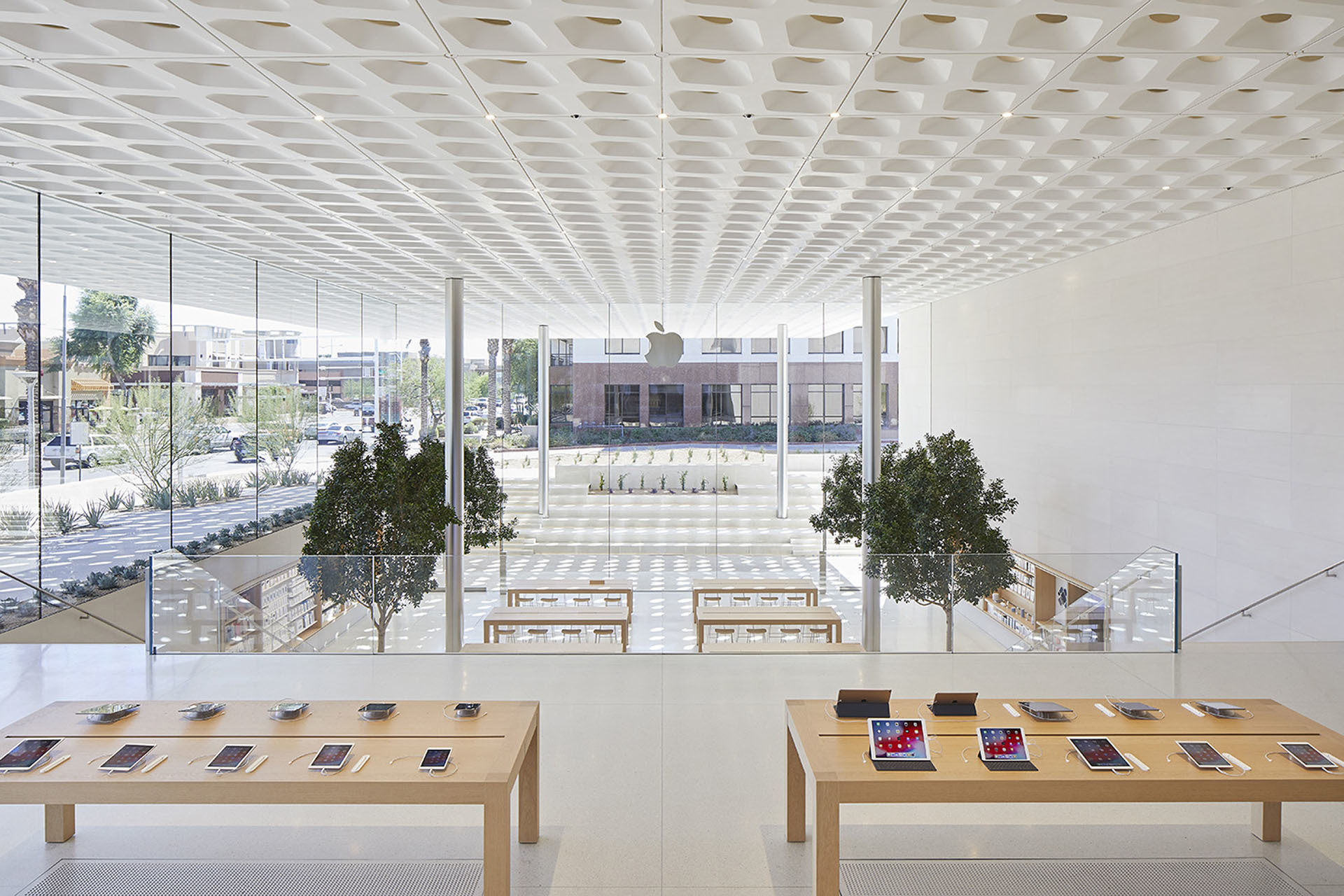

1600 Apple Scottsdale Interior 1

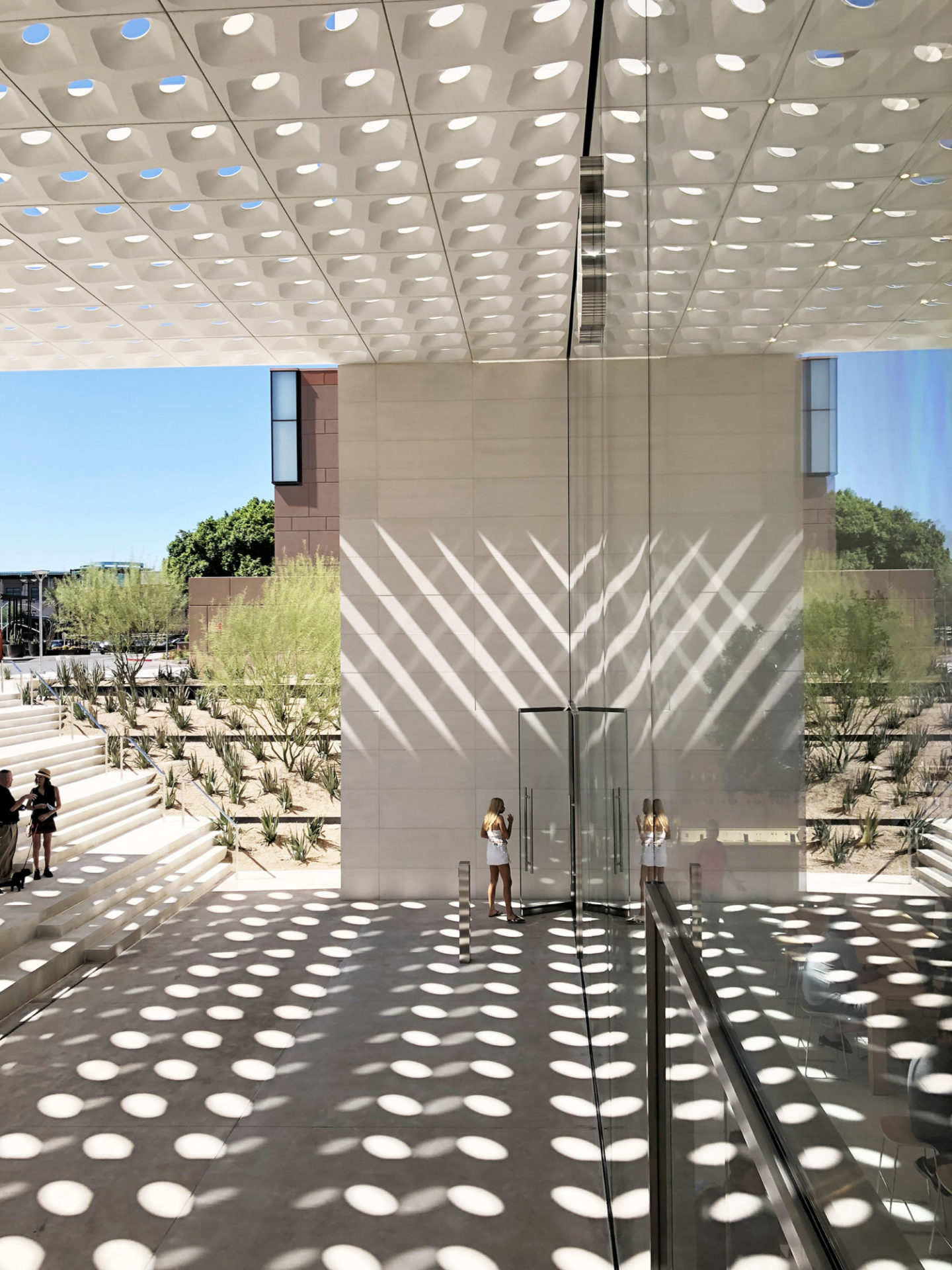

Laminated low-iron glazing is used for maximum transparency between the interior and exterior. The design reduces direct sunlight and heat gain on glass façades to improve the glazing performance and overall building energy performance. A performative perforated canopy of Ultra High-Performance Concrete cantilevers to shade the glass façade and eliminate direct sunlight in the store during hours of operation. Perforated with apertures, parametrically designed to the store’s exact latitude and longitude, and scaled in relation to their distance to the glazing, the canopy allows patrons unfettered views of the sky while keeping the façade and interior cool.

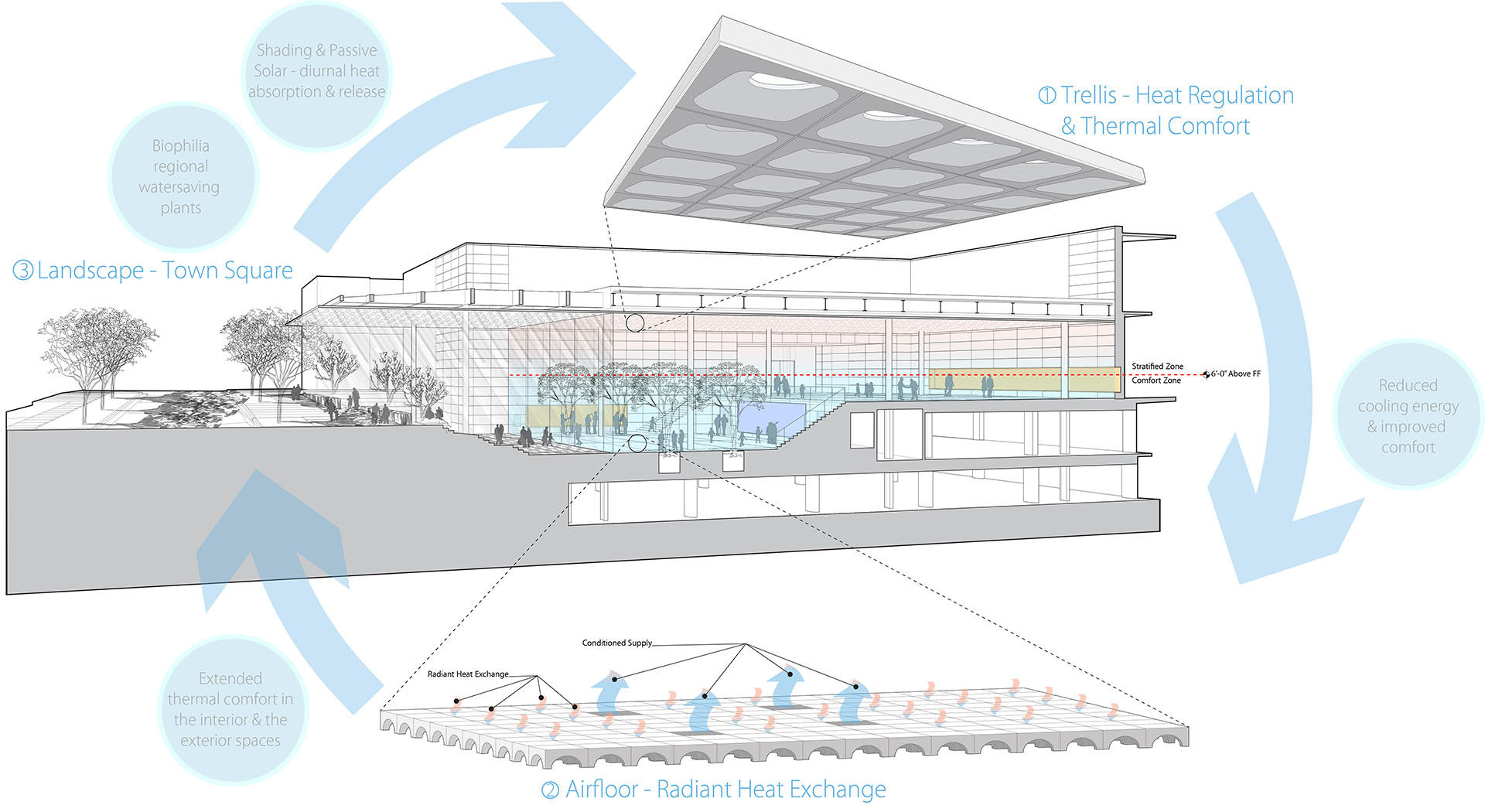

1600 Apple Scottsdale Sustainability Diagram

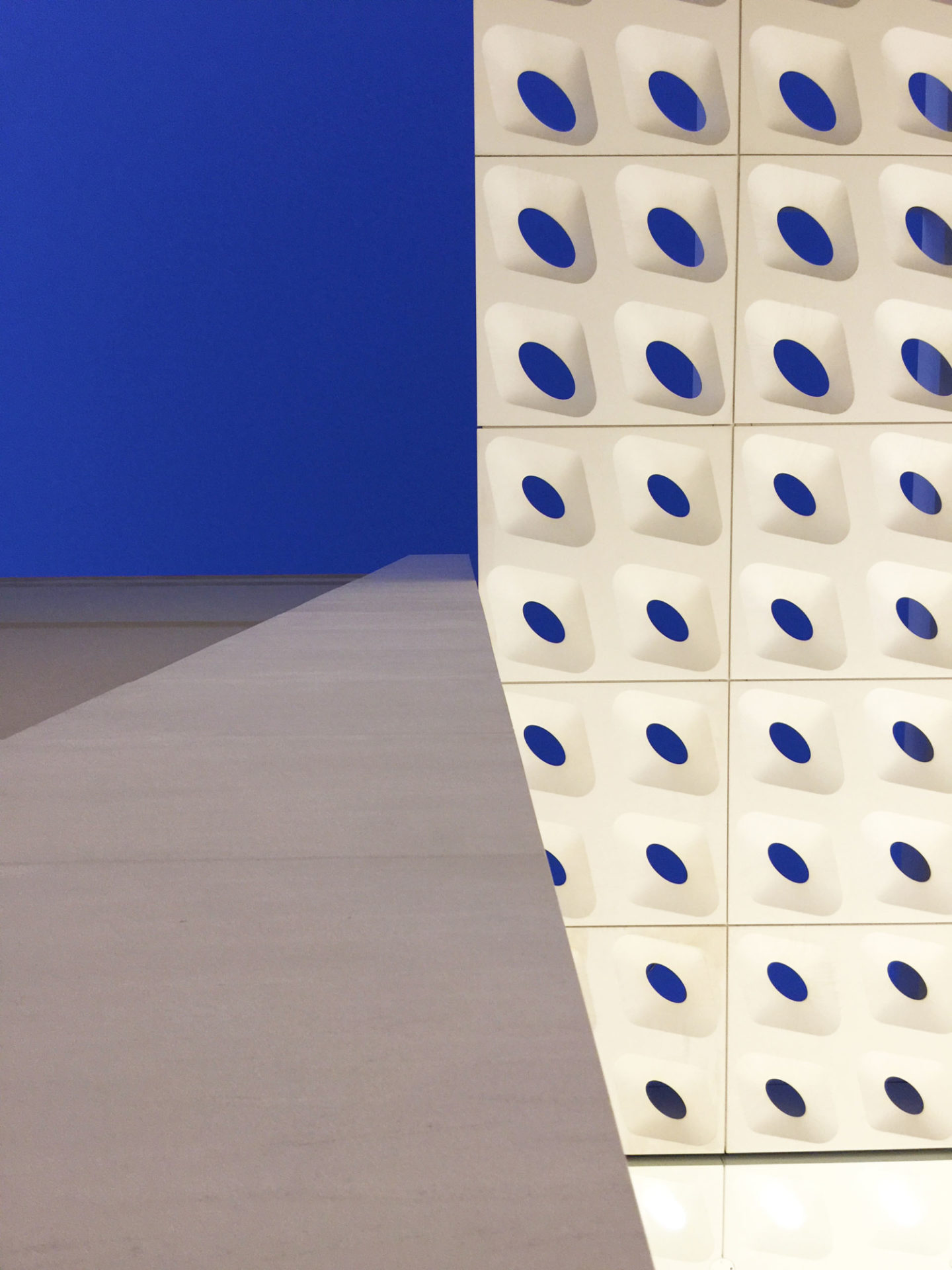

1600 Apple Scottsdale Detail 1

This project did not seek specific third-party certifications, however voluntarily complied with the 2015 International Green Construction Code (Scottsdale Green Building Program) and implemented the client driven Environmental Responsibility Guideline Objectives which focus on reduction of climate change impact, energy efficiency, enhanced commissioning, resource conservation and material safety. The project design yields an anticipated annual energy consumption savings of 36.7%, as compared to performance values set forth in ASHRAE Standard 90.1-2010 and recycled/diverted construction waste of 88.96%.

Details

Year
2018
Location
Scottsdale, AZ
Size
17,000 GSF
Program
Retail Store

Team

Ennead Design Team
Tomas Rossant, Molly McGowan, Anthony Guaraldo, Brian Masuda, Edward Kim, David Monnar, Patrick O'Neill, Mingxi Zou
Owner Design Team
Apple Retail, Real Estate and Development
Engineering Consultant
BuroHappold Engineering
Photography
Hufton and Crow, Ennead Architects
